Mini Track Tractor FDT356

Mini track tractor FDT356
Engine type :In-line,water-cooling,swirl chamber
No. of cylinder : 4

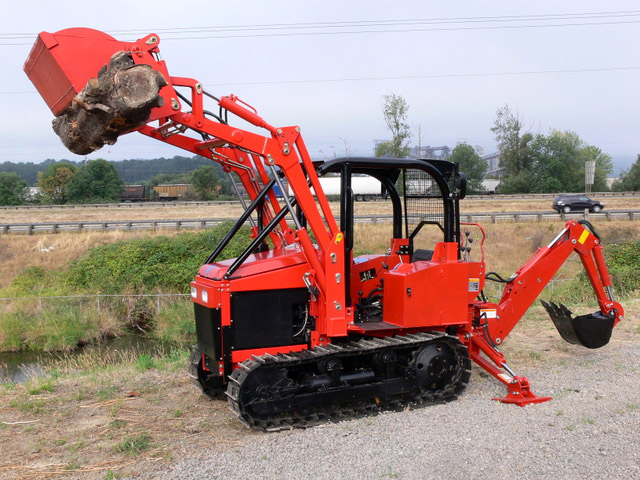

Mini track tractor can equip the front end loader and backhoe



         Model      Specifications

FDT356S-SA

Engine

Type

In-line,water-cooling,swirl chamber

No.of Cylinder

4

Cylinder Bore

85mm

Piston Stroke

95mm

Displacement

2.16L

Aspiration

Natural

Max. power

25.7kw@2350rpm

Max. torque

120Nm@1650rpm

Fuel

Diesel

Fuel consumption

≤264g/kWh

Lubrication means

Full pressure by rotary pump

transmission

Clutch

Single dry disk diaphragm-spring clutch 10”, pedal control

Gearbox

2-shaft, sliding gear shift, 8fwd+2rev

Main drive

Spiral bevel gear

Final drive

Externally meshed spur gear

Brake and steering   (interconnected)

steering clutch

Dry ceramic-metallic multi disk clutch

brakes

Brand brakes controlled by pedals

Undercarriage system

Undercarriage frame

Semi-rigid

Track rollers(each side)

5+1


Tension device

Helical spring, adjusted by screw

Number of shoes

40 (1pitch=109mm)


Hydraulic blade and 3-point hitch system

Gear Pump

CBT-F314

Rated capacity

29.4 lpm(7.7gpm) (depend on the rotation speed of engine)

Rated pressure of relief valve

16MPa(2230psi)

Control valve

4-spool

Blade control

Lift: raise, hold, lower, float

Angle: right, hold, left

Tilt: right, hold, left

Blade lift cylinder   bore X stroke / number

Double action 50mm X 285mm / 2

Blade angle cylinder   bore X stroke / number

Double action 63mm X 280mm / 2

Blade tilt cylinder   bore X stroke/ number

Double action 63mm X 50mm / 1

Hitch control by 1 level

Raise, hold, lower(float)

Elevating cylinder boreXstroke /number

Single action 80mm X100mm / 1

Lift capacity @hitch point

7350N(1650lbs)

Lifting height at hitch point:

720mm

Type of hitch

Rear 3-point, category I

Power take-off

Type

Mechanical, dependent

Two rotary speeds

540rpm @engine 1812rpm

1000rpm @engine 1772 rpm

Shaft diameter

35mm(1 3/8”), 6 splines
