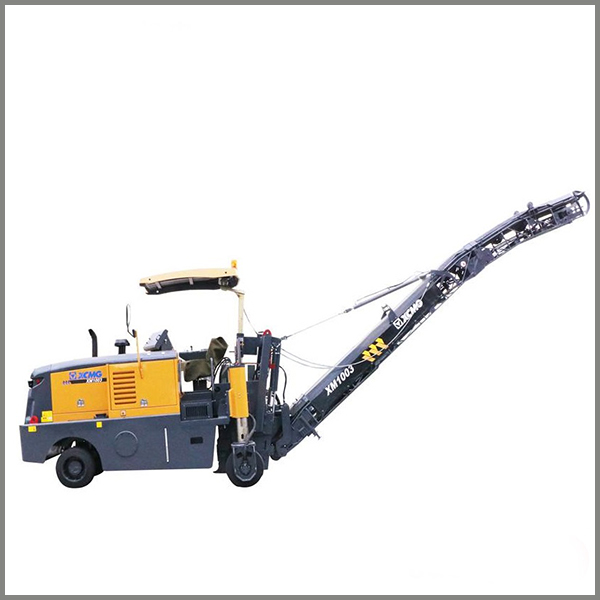

Cold Milling Machine XM1003

Shangchai 162KW Engine
International brand pump,motor,reducer
Four-wheel driving
Mechanical driving milling rotor/belt driving milling rotor(XM1003K)
Skid resistant lock
Hydraulic quick coupler connector
Optional auto-leveling meter
ModelXM1003XM1003K
Max. milling width(mm)10001000
Max. milling depth(mm)180300
Tip distance (mm)1815
Number of tools82100
Drum diameter with tools(mm)930930
Engine ModelSC9DK220G3SC9DK220G3
Engine ManufacturerShangchaiShangchai
Rated speed(rpm)22002200
Rated power(kW)162162
Fuel tank(L)350450
Hydraulic oil  tank(L)130130
Water tank(L)800860
Operating speed(m/min)0-450-45
Travel speed(km/h)0-80-8
Groundability(%)50%70%
Theoretical discharge capacity (m³/h)84127
Operating weight (Kg)1560017200
Ground clearance(mm)160160
Dimension LxWxH(mm)4690x2500x35004837x2546x3750
