16Ton Pneumatic Tire Roller XP163
16Ton Pneumatic Tire Roller XP163
Operating weight 16tons ,
Min. working weight:11.1 tons ,
YuChai engine 92kW
DANA or Chinese made axle
Saul hydraulic system
Maximum visibility .Comfortable driving cabin, Easy for operation .Easy for maintenance.
Adopt top brand engine , pump ,vibratory bearing .Great working performance .
Min. working weight:11.1 tons ,
YuChai engine 92kW
DANA or Chinese made axle
Saul hydraulic system
Maximum visibility .Comfortable driving cabin, Easy for operation .Easy for maintenance.
Adopt top brand engine , pump ,vibratory bearing .Great working performance .

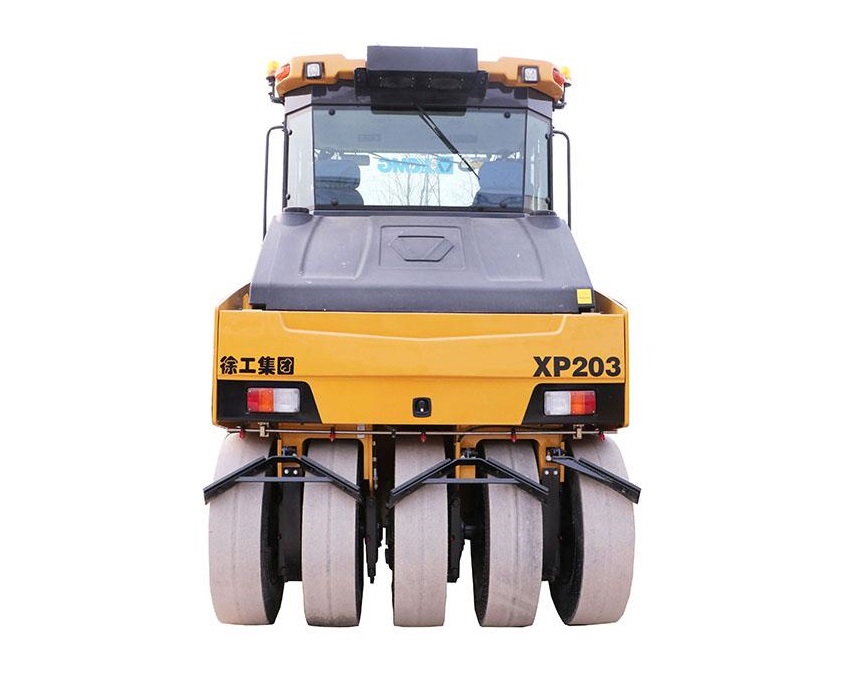

| Model | XP163 | XP203 |
| Min. working weight(kg) | 11100 | 11740 |
| Max. working weight(kg) | 16000 | 20000 |
| Ground pressure(kPa) | 200-400 | 200-400 |
| Travel speed (km/h) | ||
| Speed I | 4.2 | 4.2 |
| Speed II | 8.2 | 8.2 |
| Speed III | 17.4 | 17.4 |
| Reverse speed I | 4.17 | 4.17 |
| Reverse speed II | 8.2 | 8.2 |
| Theoretical gradeability(%) | 20 | 20 |
| Min. external turning radius(mm) | 7230 | 7330 |
| Min. ground clearance(mm) | 250 | 250 |
| Compaction width(mm) | 2055 | 2250 |
| Roller overlap amount(mm) | 30 | 45 |
| Tyre specification | 9.00-20-12PR | 11.00-20-16PR |
| Amount | Front 4 Rear 5 | FrontFront 4 Rear rear 5 |
| Engine model | YC4A125Z | YC4A125Z |
| Type | Water cooling, pressurizing | Water cooling, pressurizing |
| Rated power(kw @2200 r/min) | 92 | 92 |
| Engine oil consumption(g.kw/h) | ≤230 | ≤230 |
| Hydraulic oil tank capacity(L) | 60 | 60 |
| Diesel oil tank capacity(L) | 130 | 150 |
| Overall length(mm) | 4715 | 4770 |
| Overall width(mm) | 2055 | 2250 |
| Overall height(mm) | 3258 | 3285 |
