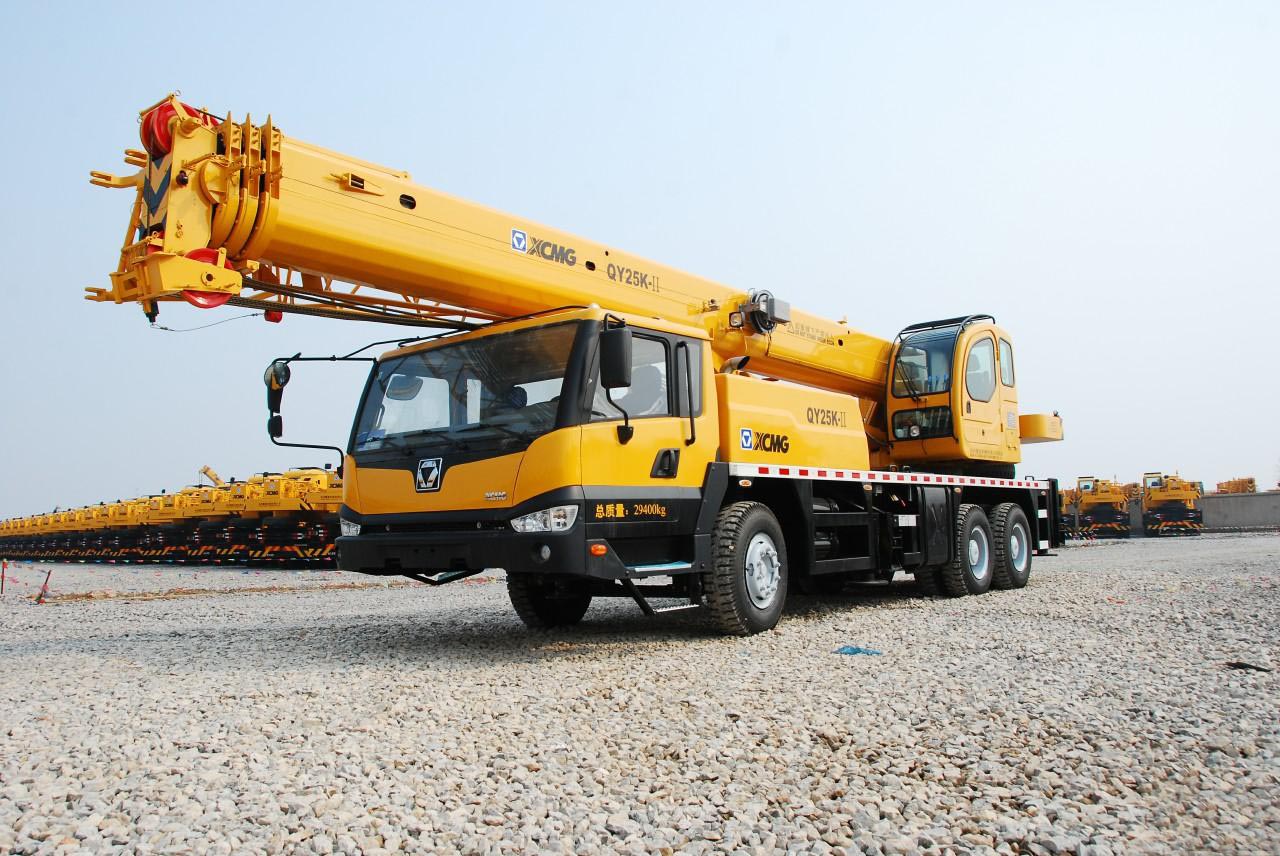

25Ton Truck Crane QY25K
25Ton Truck Crane QY25K
25T Mobile Truck Crane QY25K
Max. lifting capacity 25000kg
Max. lifting torqe 961 kN.m
Max. boom length 39.5m
Shangchai engine 206kW
Max. lifting capacity 25000kg
Max. lifting torqe 961 kN.m
Max. boom length 39.5m
Shangchai engine 206kW
| Model | QY25K-II | QY25K5-I |
| Overall length（mm） | 12650 | 12300 |
| Overall width（mm） | 2500 | 2500 |
| Overall height（mm） | 3380 | 3335 |
| Total weight in travel (kg) | 29400 | 31750 |
| Front axle load(kg) | 6200 | 6550 |
| Rear axle load(kg) | 23200 | 25200 |
| Engine model | SC8DK280Q3 / WD615.329 | SC8DK280Q3 /WD615.329 |
| Engine rated power kW/(r/min) | 206/2200 213/2200 | 206/2200 213/11400 |
| Engine rated torque N.m/(r/min) | 1112/1400 1160/1400 | 1112/1400 1160/1400 |
| Max. travel speed (km/h) | 75 | 80 |
| Min. turning diameter（m） | 21.5 | 22 |
| Min. ground clearance（mm） | 275 | 260 |
| Approach angle(°) | 16 | 16 |
| Departure angle(°) | 13 | 13 |
| Max. grade ability(%) | 30 | 40 |
| Fuel consumption for 100km (L) | ≈37 | ≈37 |
| Max. rated total lifting capacity(t) | 25 | 25 |
| Min. rated working radius（mm） | 3000 | 3000 |
| Turning radius at turntable tail（m） | 3.065 | 3.065 |
| Max. lifting torque(kN.m) | 1010 | 961 |
| Base boom（m） | 10.7 | 10.4 |
| Fully extended boom（m） | 34.19 | 39.5 |
| Fully extended boom+jib（m） | 42.15 | 47.8 |
| Longitudinal outrigger span（m） | 5.14 | 5.14 |
| Lateral outrigger span（m） | 6 | 6 |
| Boom luffing time(s) | 75 | 68 |
| Boom full extension time(s) | 100 | 150 |
| Max. swing speed（r/min） | ≥2.5 | 2.5 |
| Max. speed of main winch (single rope)(m/min) | ≥120 | 125 |
| Max. speed of aux. winch (single rope)(m/min) | ≥120 | 125 |
