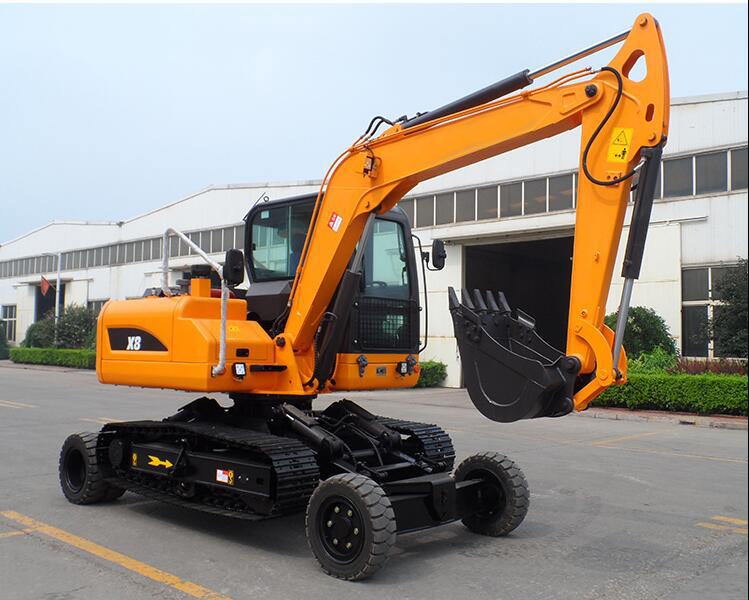

8Ton Wheel Excavator X8

Products > Excavators > 8Ton Wheel Excavator X8

8Ton Wheel Excavator X8

Operating Weight: 8000kg
Bucket capacity: 1.4m3
Engine: XINCHAI- A498BZG
Rated power: 48KW
Hydraulic pump:SHIMADZU 23-23
Travelling&Swing motor: EATON
Main valve: Korea SUNJIN brand
Different attachments available.

Model

X8

Main   specification

Total weight

8000KGS

Overall dimension

6200X2100X2750 mm

Cab dimension

955x1645 mm

Tail turning radius

1788 mm

Ground clearance

252 mm

Wheel base

3500 mm

Tread

1930 mm

Engine model

XINCHAI- A498BZG

Engine power

48 kw

Rated speed

2300r/min

Hydraulic   system

Main pump

SHIMADZU 23-23

Displacement

23.7L/rev

Pilot pump Tyre

Gear pump

Displacement

4ml/r

Hydraulic   Pressure

22 Mpa

Swing motor

EATON brand

Travelling motor

EATON brand

Main valve

Imported from south   korea  SUNJIN brand

Hydraulic pipes

Manuli brand

Flow rate

48x2=96 L/min
