Model

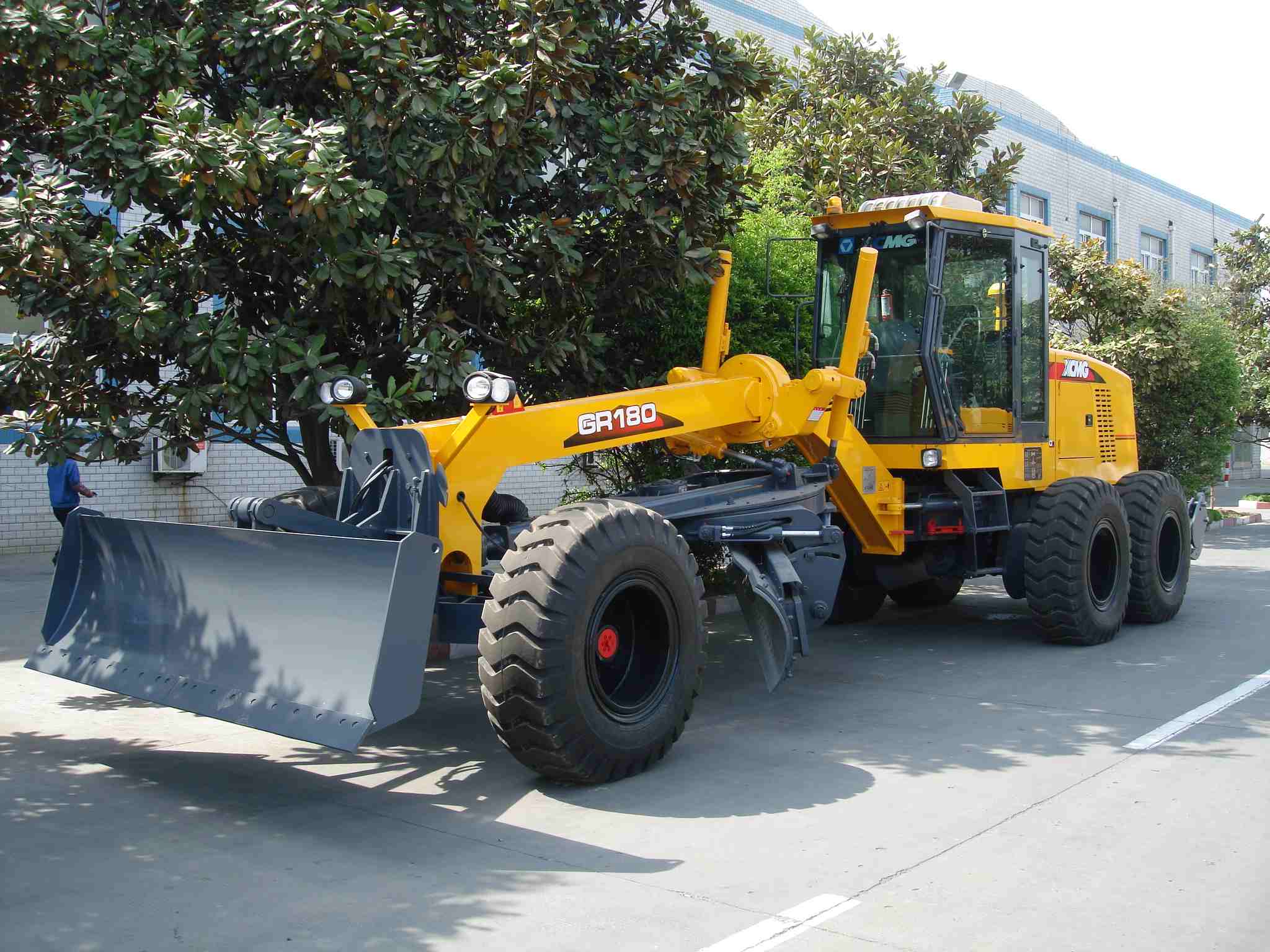

GR180

Engine model

SC8D190G2B1/ Original Cummins for option

Rated power/speed

140kw(190hp)/2200rpm

Dimension(L*W*H)

9298*2601*3430mm

Operating weight

15400kg

Module weight on front wheels

4620kg

Module weight on rear wheels

10780kg

Tire size

17.5-25RP12

Min ground clearance

430mm

Distance between front and rear axles

6266mm

Distance between middle and rear wheels

1639mm

Max steering angle of front wheels

+17/-17

Max oscillation angle of front axle

7.8m

Frame articulation angle

+15/-15

Min turning radius using articulation

+25/-25

Maximum lift above ground

460mm

Maximum depth of cutting

500mm

Maximum blade position angle

90

Blade cutting angle

28-70

Circle reversing rotation

360

Moldboard width*height

3965*610mm

Travelling speed ,forward

5,8,11,19,23,38km/h

Travelling speed ,reverse

5,11,23km/h

Max tractive force

82kN

Max gradeability

20

Tire inflation pressure

2.6bar

Working hydraulic pressure

18MPA

Transmission pressure

1.6-1.8Mpa(16-18kg/cm2)

Cooling system

50L

Fuel tank

280L

Engine(crankcase)oil

24L

Transmission

26L

Counterbalancing case

46L

Axles

28L

Hydraulic system

110L

Turbine box

2.5L
