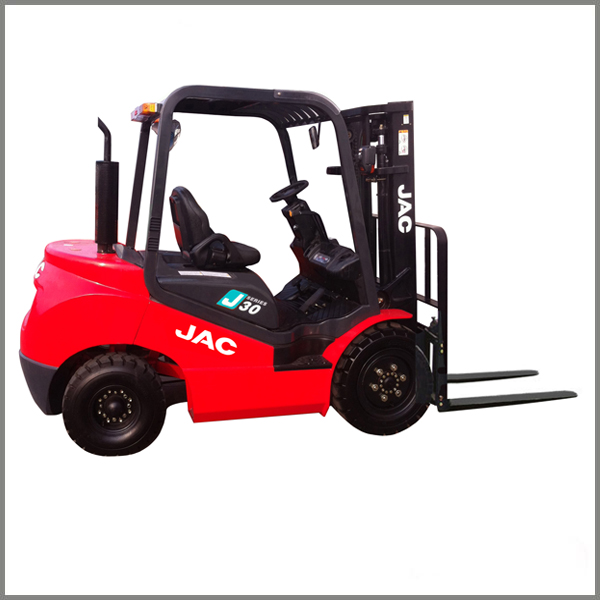

3Ton Diesel Forklift CPCD30

Load capacity

mm

3000

Overall dimension(L*W*H)

mm

2680*1225*2070

Load center

mm

500

Tilting angles(forward-backward)

6°/12°

Free lift

mm

305

Max lifting speeds(without load/with load)

mm

520/470

Max driving speeds(without load/with load)

mm

20/18.5

Max lowering speeds(without load/with load )

mm

520/550

Max towing speeds(without load/with load )

N

1038/1146

Max gradeability(without load/with load )

%

15

Minintersecting aisle

mm

2885

Forks(L*W*H)

mm

1070*125*45

Min ground clearance at lower point

mm

110

Weight distribution with load(front/rear)

kg

6500/870

Weight distribution without load (front/rear)

kg

1780/2630

Battery voltage/capacity

v/ah

12/100/20h

Service brake

Hydraulic-foot pedal

Parking brake

Mechanical-hand lever

Internal combustion engine modle

Xinchang 490 BPG

Internal combustion engine rate horsepower

Kw/r.p.m

37

Internal combustion engine rate torque

N.m/r.p.m

148

Internal combustion engine number of cylinder

4

Internal combustion engine displacement

L

2.54

Internal combustion engine fuel tank capacity

L

52

Total weight

kg

4410
